Search component data using Bosch QualityScan

Proceed as follows:

1. Enter repair ID.
   • The 10-digit repair ID consists of upper-case letters (without specific characters such as 'Umlauts') and/or digits from 2 to 7.The repair ID is printed on the repair ID label or repair ID clip of the Bosch injection component.



     Repair ID label with Repair ID W4NXALVAJH



     Repair ID label of a Bosch Diesel Center with repair ID AAABAA3IK3

Or

1. Enter type-part number, date of production and serial number.

   Type-part number, date of production and serial number are located on the plastic collar on the top end of Bosch common-rail injectors (CRI/CRIN) and on the type label of Bosch common-rail pumps (CP):

   • Type-part number: 10-digit number starting with 0 445 (some CRIN do not have these numbers)
   • Date of production: such as a 5 or 6-digit number (sometimes hyphenated)
   • Serial number: such as a 4-digit number
     • The description applies to most Bosch injection components. On some Bosch injection components this information is presented differently.
     • The graphics are exemplary.For further information, refer to:Bosch diagnostic software "ESI[tronic].

   Bosch common-rail injectors

   CRI 0 445 110 xxx



   1 IMA code of the injection valve

   2 Type-part number

   3 Serial number

   4 Date of manufacture

   CRIN 0 445 120 xxx





   1 IMA code of the injection valve

   2 Type-part number

   3 Serial number

   4 Date of manufacture

   Bosch common-rail pumps

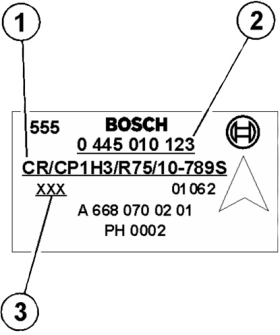

   CP1H 0 445 010 xxx



   1 Bosch type designation

   2 Type-part number

   3 Date of manufacture(From build year 2000, date format: year.month.day)

   CP1K 0 445 010 xxx



   1 Bosch type designation

   2 Type-part number

   3 Date of manufacture(From build year 2000, date format: year.month.day)

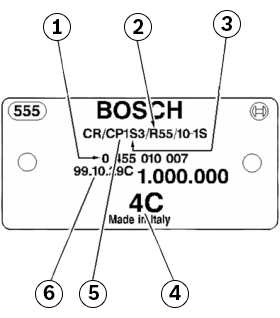

   CP1S 0 445 010 xxx



   1 Type-part number

   2 Sense of rotation (L = left, R = right)

   3 Pump type (S = Standard, K = compact)

   4 Engine cylinders

   5 Bosch type designation

   6 Date of manufacture

   CP3 0 445 010 xxx



   1 Date of manufacture

   2 Serial number

   3 Type-part number

   4 Bosch type designation

2. Read out and enter the security code, e.g. DUWQ6.



   • The security code is required to prevent misuse. If the security code is not clearly legible, a new security code can be created with .
3. Select <Search>.

• Contact details, component data and repair data are shown.
